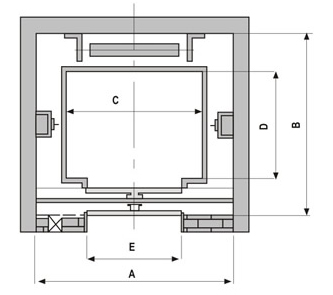

Hoistway Machine Room plan for auto door

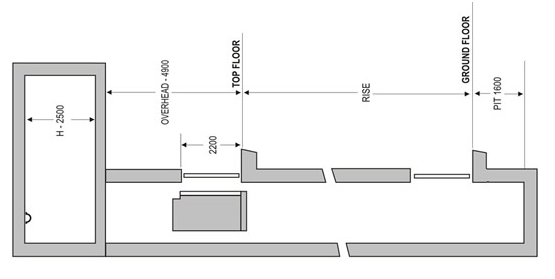

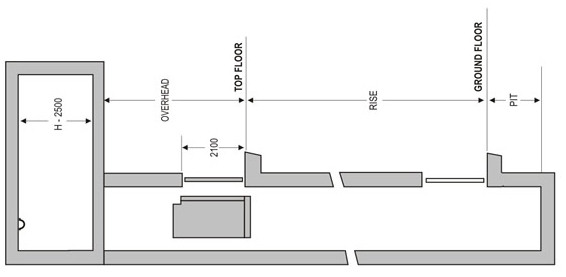

Hoistway Elevation Drawing
1. Auto Door
Auto Door Passenger Elevators for Residential, Commercial Buildings, Hotel, Clubs & Bungalows depending upon the shaft size with speed / amenities up to choice of owners.
| Various options are available - | |
|---|---|
| Speed | 0.70 to 1.5 mt/ps |
| Capacity | 06 to 20 passengers |

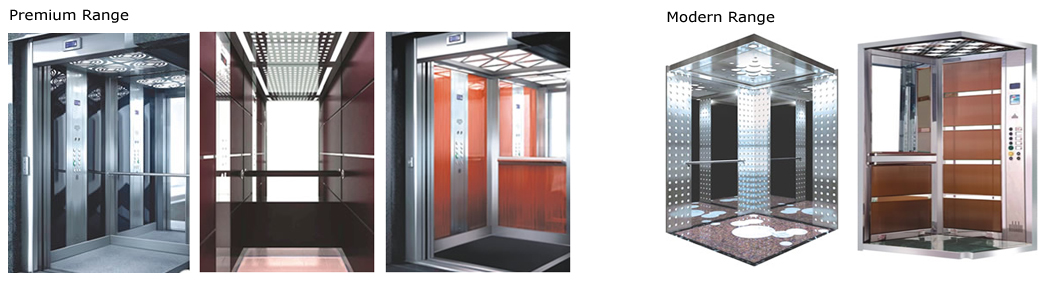

| Car Finish |
MS powder Coated Car. Stainless Steel Hair line Finish Car. Steel Designed & Steel Hair line Finish Car. Steel Mirror & Steel Hair line Finish Car. Titanium Gold designed with stainless steel Finish Car. |
| Type of Door |
Center-Opening Auto Door. Telescopic Auto Door. |
| Doors Finish |
MS powder Coated Auto Door. Stainless Steel Hair line Finish Auto Door Stainless Steel Designed Finish Auto Door Titanium Gold Designed Finish Auto Door Glass With Stainless Steel Framed Finish Auto Door |
| Switch Panels Button |
Surface Micro Electro Button. Touch Button. |
| Switch Panel Display |
Seven Segment Digital LED Display. Digital Dot Matrix Display. LCD Display. |
Hoist way machine room size Passenger Lift with auto doors :
| Load | Lift Weel | Car Inside | ENT Rance | Machine Room | UP To 1.5 M/Sec. | Up To 2.5 M/Sec. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Person | Weight | Width | Depth | Width | Depth | Width | Depth | Height | PIT | O.H. | PIT | O.H. | |
| IN KG. | A | B | C | D | E | F | G | H | I | J | K | M | |
| 6 | 408 | 1700 | 1550 | 1100 | 1000 | 700 | 3000 | 3500 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 8 | 544 | 1900 | 1650 | 1300 | 1000 | 800 | 3200 | 3500 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 10 | 680 | 1900 | 1900 | 1350 | 1300 | 800 | 3500 | 4000 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 13 | 884 | 2500 | 1650 | 2000 | 1100 | 900 | 4000 | 4200 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 16 | 1088 | 2500 | 1850 | 2000 | 1300 | 1000 | 4500 | 4800 | 2500 | 1600 | 4800 | 2600 | 6700 |
| 20 | 1360 | 2500 | 2050 | 2000 | 1500 | 1000 | 5000 | 5000 | 2500 | 1600 | 4800 | 2600 | 6700 |
2. Manual Door
Manual Passenger Elevators for economically suited all type of Residential & Commercial Buildings depending upon the shaft size with speed / amenities up to choice of owners.
| Various options are available - | |
|---|---|
| Speed | 0.70 to 1 mt/ps |
| Capacity | 04 to 30 passengers |
| Car Finish |
MS powder Coated Car. Stainless Steel Hair line Finish Car. Steel Designed & Steel Hair line Finish Car. Steel Mirror & Steel Hair line Finish Car. |
| Doors Finish |

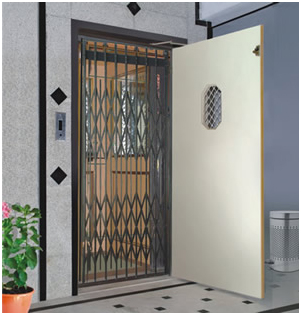

M.S Swing Manual Doors. M.S Collapsible Manual Doors Wooden Swing Manual Doors |
| Switch Panels Button |
Surface Micro Electro Button. |
| Switch Panel Display |
Seven Segment Digital LED Display. Digital Dot Matrix Display. |
Hoist way machine room size passenger lift with manually operated doors :
| Load | Lift Weel | Car Inside | Entrance | Machine Room | |||||
|---|---|---|---|---|---|---|---|---|---|
| Person | Weight | Width | Depth | Width | Depth | Width | Depth | Height | |
| IN KG. | A | B | C | D | E | F | G | H | |
| 4 | 272 | 1600 | 1200 | 1100 | 700 | 700 | 3000 | 3000 | 2500 |
| 6 | 408 | 1600 | 1500 | 1100 | 1000 | 700 | 3000 | 3500 | 2500 |
| 8 | 544 | 1700 | 1600 | 1300 | 1100 | 800 | 3200 | 3500 | 2500 |
| 10 | 680 | 1850 | 1800 | 1350 | 1300 | 800 | 3500 | 4000 | 2500 |
| 13 | 884 | 2500 | 1600 | 2000 | 1100 | 900 | 4000 | 4200 | 2500 |
| 16 | 1088 | 2500 | 1800 | 2000 | 1300 | 1000 | 4500 | 4800 | 2500 |
| 20 | 1360 | 2500 | 2000 | 2000 | 1500 | 1000 | 5000 | 5000 | 2500 |
