Capsule Elevator

Home
Our Products

Capsule Elevator

Capsule elevators give an upscale, attractive feel to offices, shopping malls, multiplexes and other prestigious buildings.
Capsule elevators are inspired with creative flair to suit your particular idea.
They are offered in different sizes, specifications, shapes and capacity according to the requirements of our clients.

Features of the Capsule Elevators -
1.	Made from S.S. / M.S. with vision panel
2.	Color-Powder coated, Elegant looks, light in weight and variable speed.
3.	Controller Full Proof to voltage (PLC or Sold state) with fully collective-selective system.
4.	AC VVVF drives for jerk free operation & for variable speed.
5.	Overload indication and Auto Door announcing system.
6.	Avail Inverter facility for single base at time of Power failure.
7.	Push Button Luminous type highly attractive as well as durable.
8.	Facility Floor position Indication at the floors as well as in cabin.

Option A

Load		Car Inside				Lift Well				Entrance
Person	kg	A	B	J	G	C	D	F	H	E
8	544	1000	1150	1325	700	2000	1225	1130	1100	800
10	680	1100	1150	1425	800	2200	1225	1230	1200	900
13	884	1200	1150	1550	925	2400	1225	1330	1225	1000
16	1068	1300	1250	1650	1016	2800	1325	1530	1425	1200

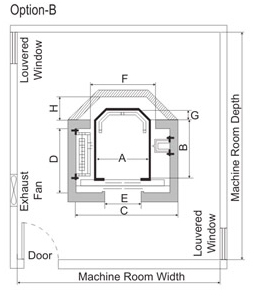

Option B

Load		Car Inside				Lift Well			Entrance
Person	kg	A	B	G	C	D	F	H	E
6	408	1000	1100	200	1800	1250	1230	470	700
8	544	1150	1200	200	2000	1380	1350	520	800
10	680	1250	1300	250	2200	1450	1480	580	900
13	884	1400	1400	300	2400	1550	1630	650	1000
16	1068	1550	1500	350	2800	1780	1650	790	1200

Option C

Load		Car Inside				Lift Well				Entrance
Person	kg	A	B	J	G	C	D	F	H	E
8	544	1000	1200	1250	600	2000	1225	1230	1000	800
10	680	1100	1300	1400	650	2200	1325	1330	1100	900
13	884	1200	1400	1550	700	2400	1425	1430	1100	1000
16	1068	1300	1500	1700	750	2800	1525	1530	1200	1200
